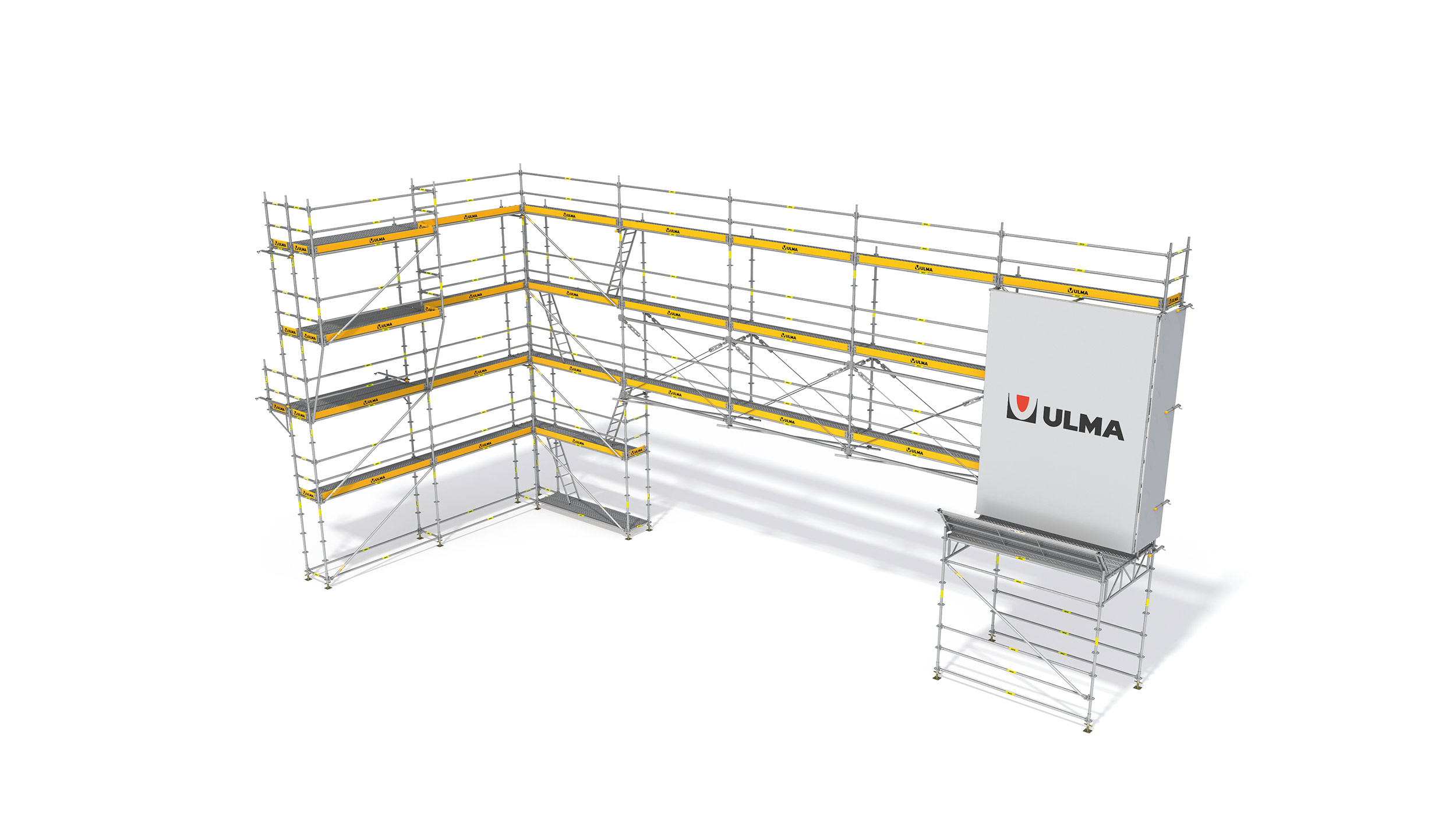

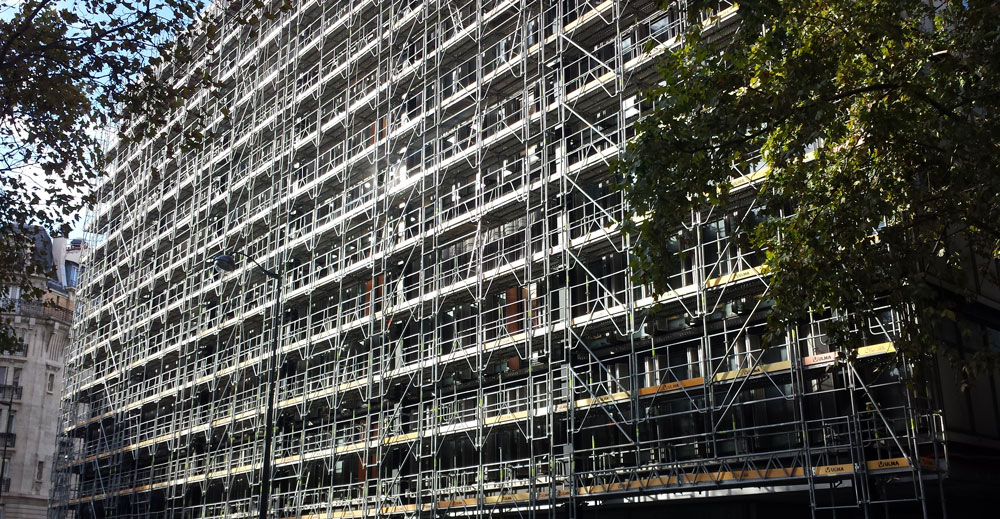

Certified ringlock scaffolding made of tubular components – standards, ledgers, and diagonals – featuring rapid joining and assembly technology based on the BRIO rosette.

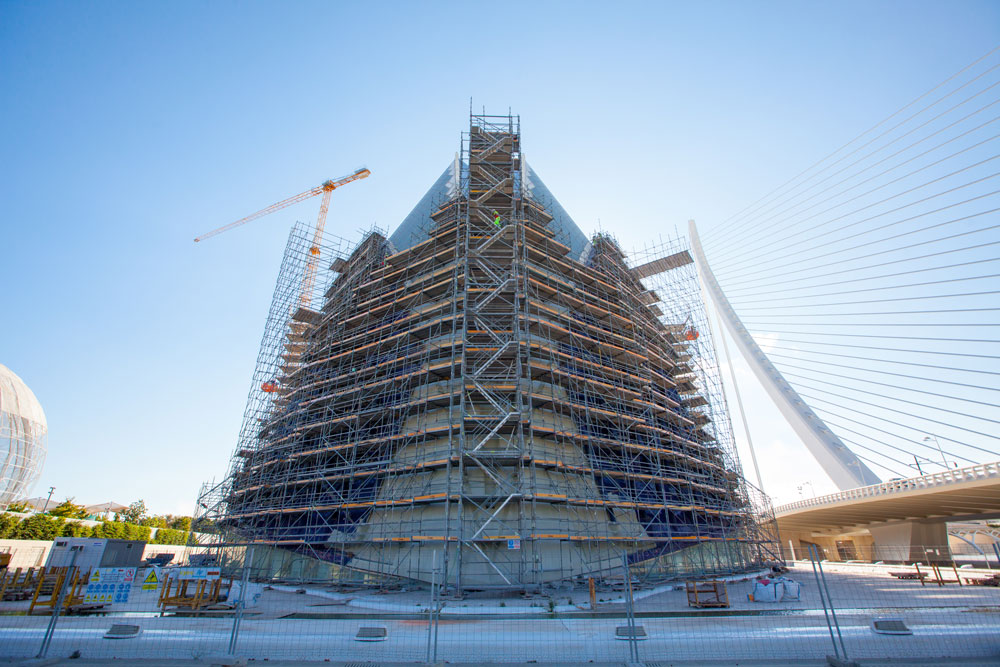

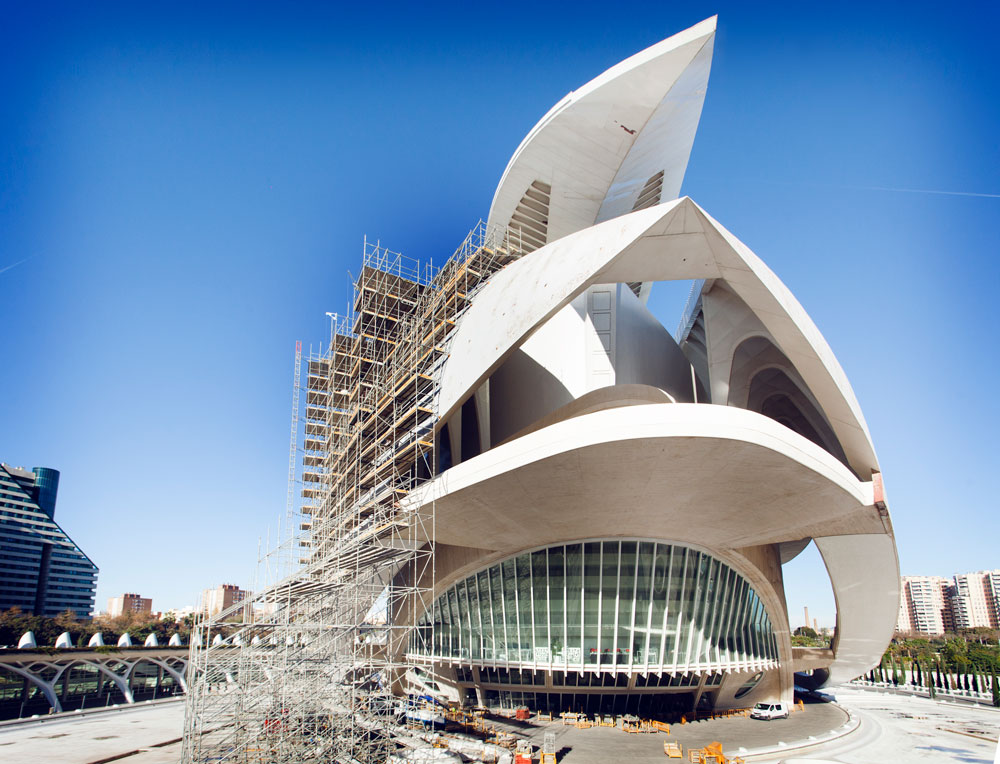

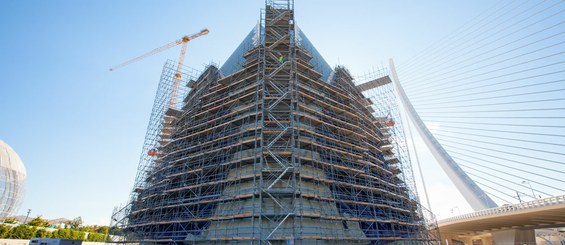

This versatile ringlock system allows complex geometries to be covered efficiently while meeting the highest safety standards.

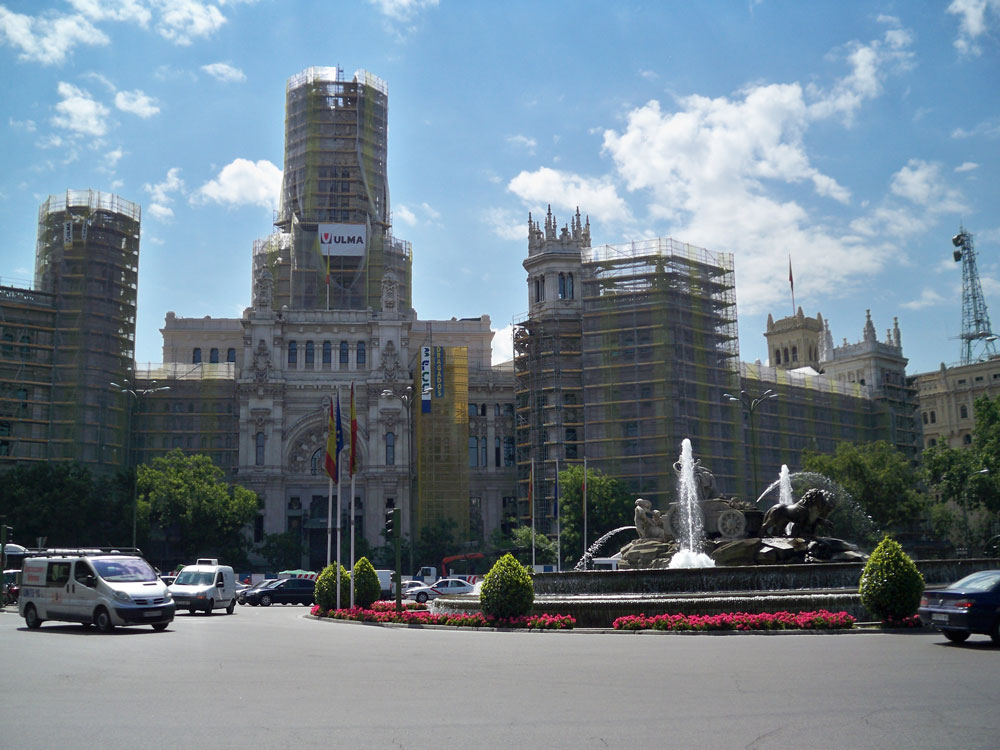

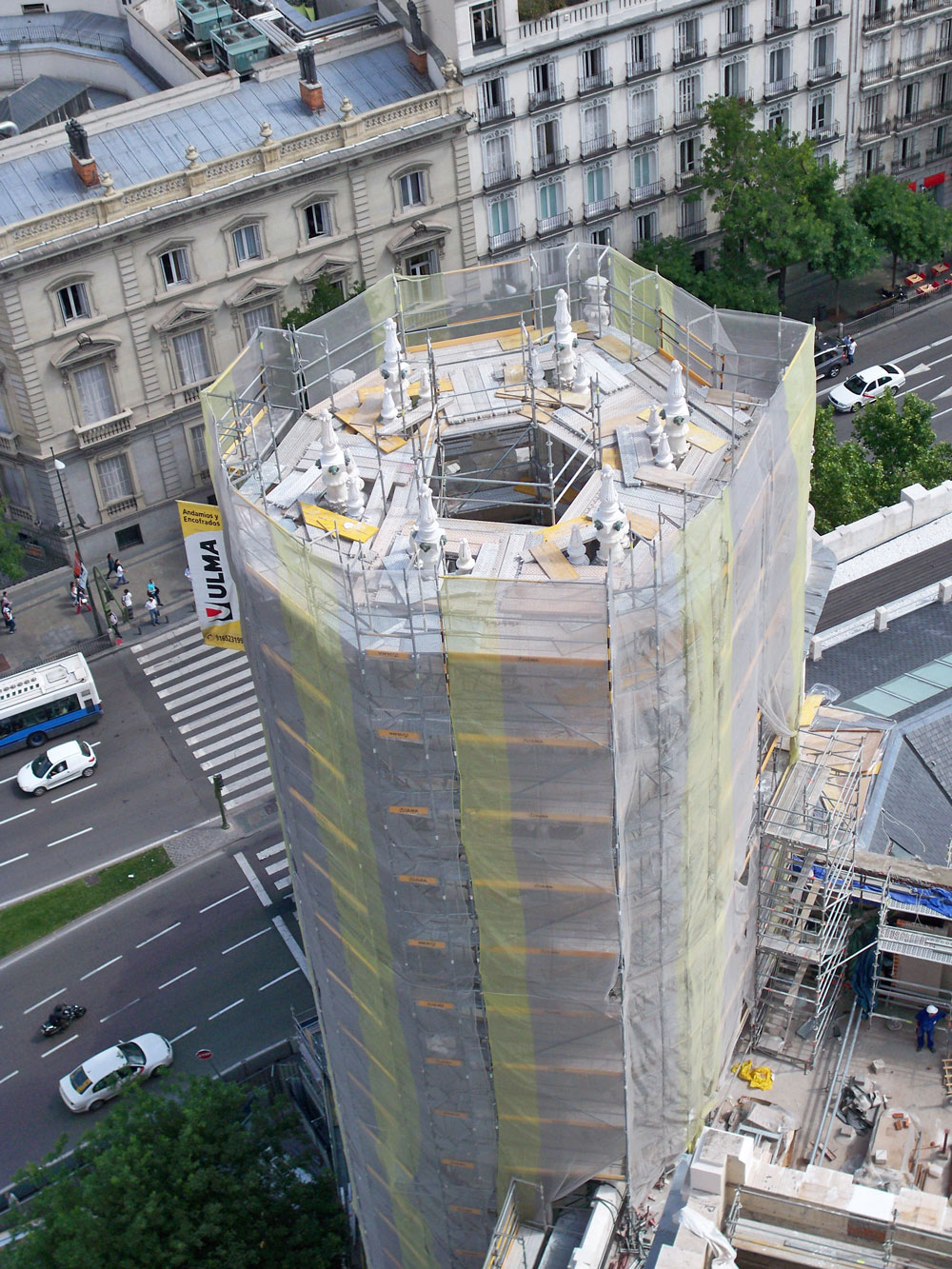

This is a system that can be used in any construction field, including new build and restoration of residential buildings, as well as structures for the industrial, energy, maritime, and leisure and entertainment sectors.
- Certified under European Standards EN 12810-1/2 and EN 12811-1 2/3
- Principal Components: standards, ledgers, braces, platforms, steel decks, guardrails, screw jacks, and toeboards.
- Effective design using galvanised steel ensures fast, simple, and intuitive assembly with a high load-bearing capacity, making the scaffolding highly rigid and stable.
- The scaffolding is formed by standards with ringlock rosettes every 50cm from which the other components are connected.
- Façade scaffolding widths: 0.70 m and 1.02 m, with 2.00 m in height between platforms.
- Modules of 0.35 m, 0.70 m, 1.02 m, 1.50 m, 2.00 m, 2.50 m, and 3.00 m in width.
- Class 4, 5, or 6 platforms, as defined by EN 12810-1/2 and EN 12811-1/2/3.
- Certified under European Standards.
- Versatile and flexible. An infinite number of structures is made possible.
- A wide range of sizes and accessories are available, to offer maximum versatility.
- Quick and easy to assemble, with few components.
- Protected against corrosion by hot-dip galvanisation: excellent surface finish and durability.

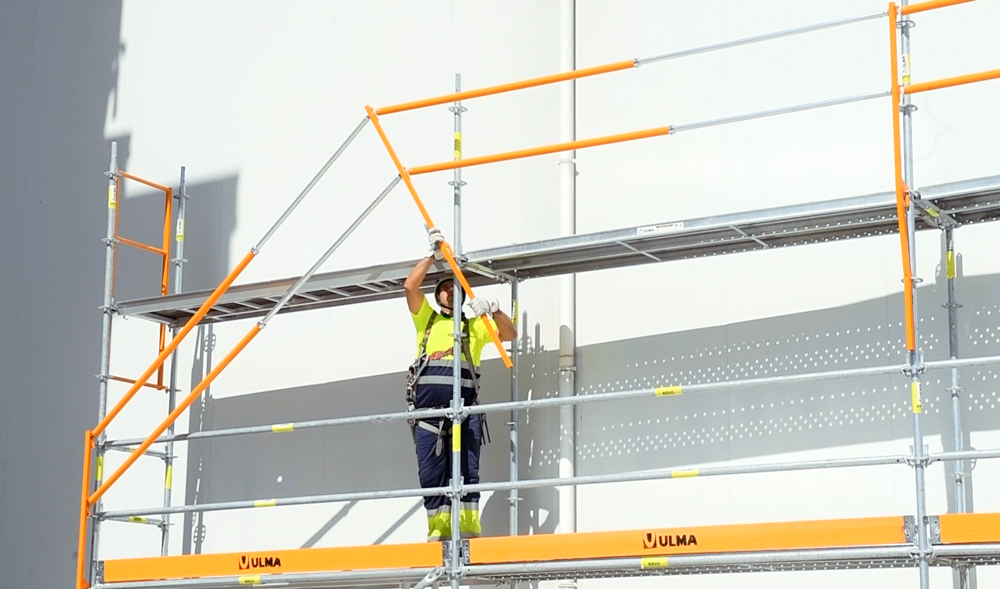

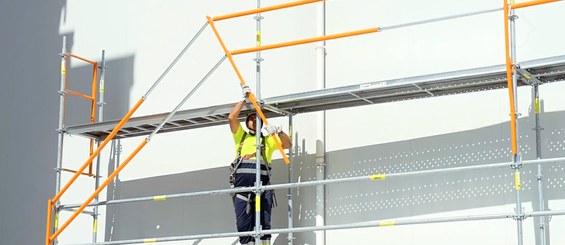

Safety:- Assembly advance guardrail for collective protection.
- Assembly from below protects against falls when accessing upper levels, in accordance with Standard EN 795.
- Guardrails for exterior and interior protection. Safe access through platform trapdoors or externally attached stairs, depending on scaffold height.
- Non-slip platforms with a cotter-pin fastening system that prevents accidental movement.
- Protection provided by configurations such as pedestrian walkways or protective fans that allow the free movement of pedestrians and vehicles, eliminating risk for both the general public and operatives.
