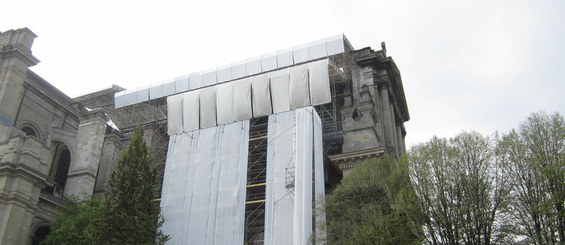

Temporary BRIO protection scaffolds are steel structures designed to ensure the safety of both workers and pedestrians while construction is underway. These structures are erected to protect workers from falls and inclement weather, allowing work to continue safely and effectively. They can also be used to protect pedestrians or traffic from the danger of falling debris and other objects.
Protection scaffolding, using BRIO ringlock scaffolding components, can be made into different configurations according to specific safety requirements, including temporary roofs, protective structures for flyovers, and slab edge protection.

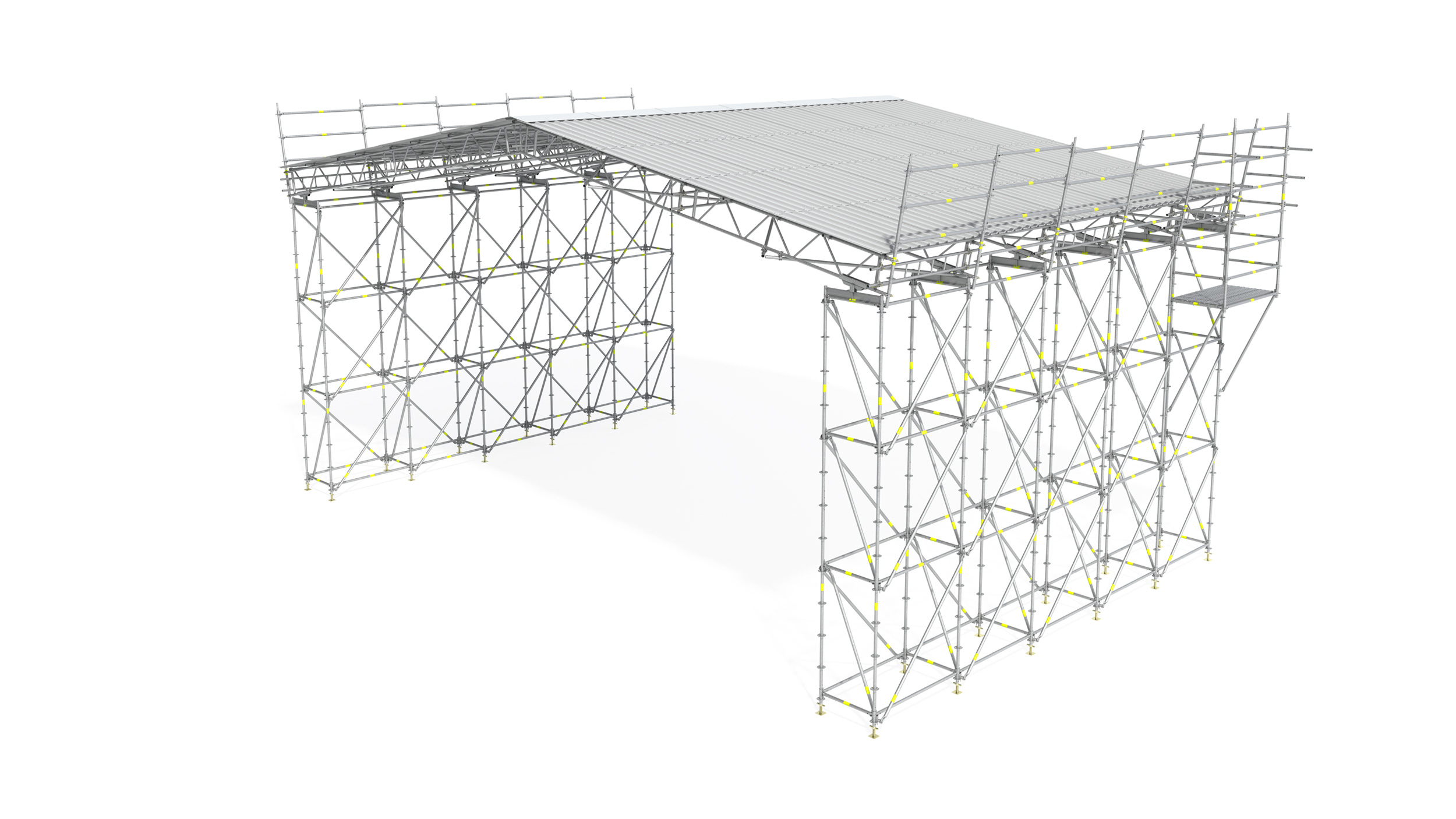

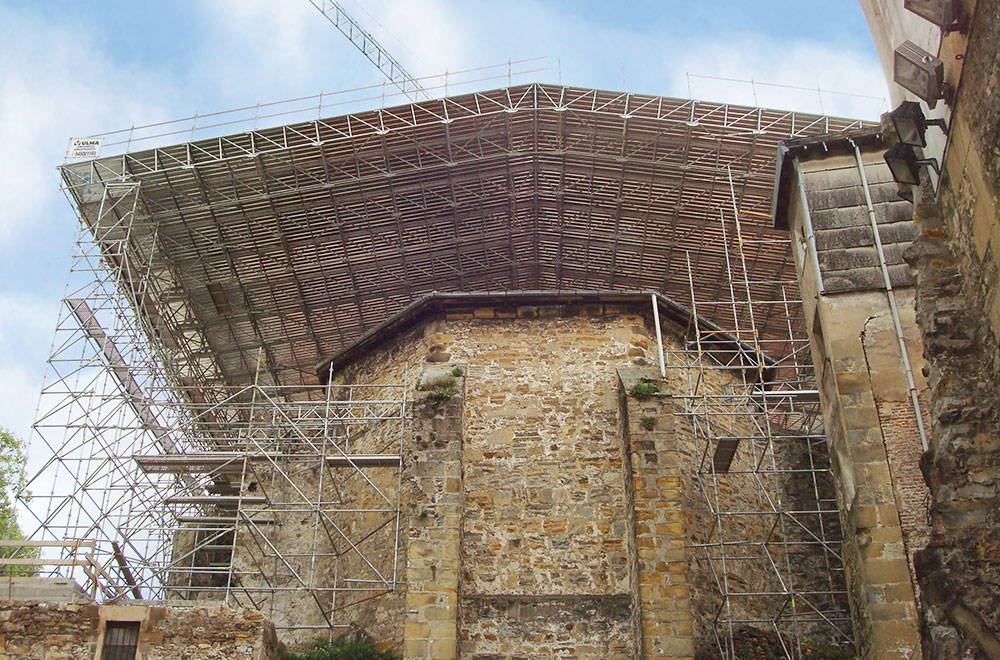

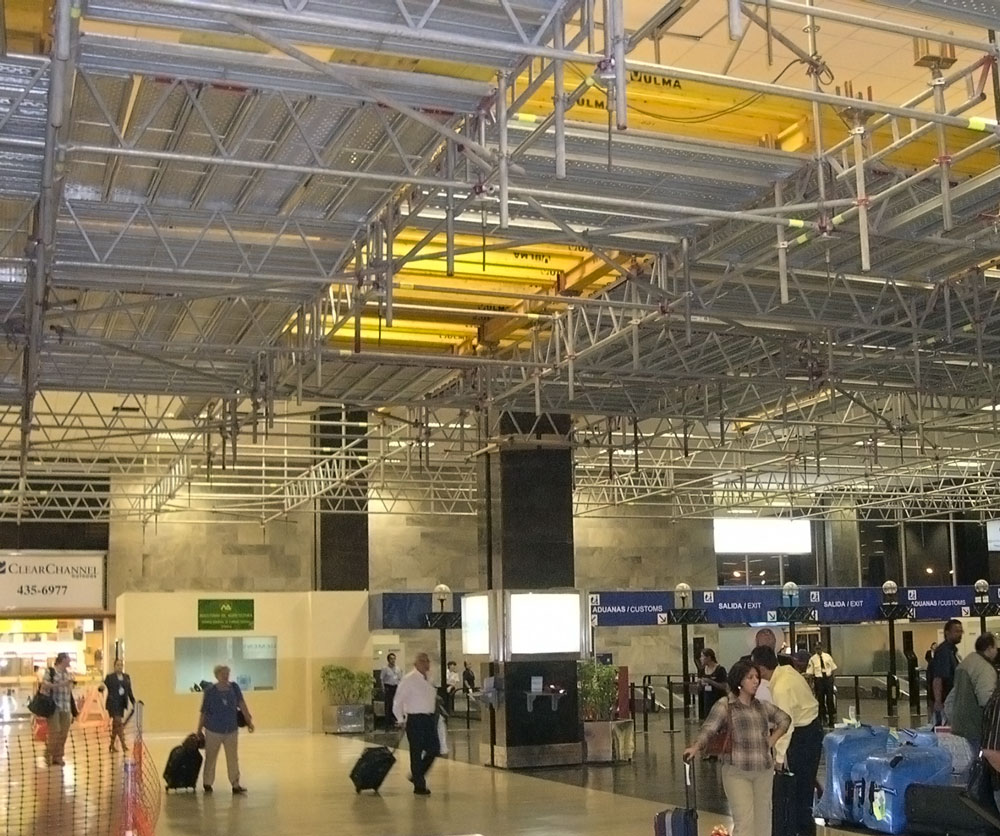

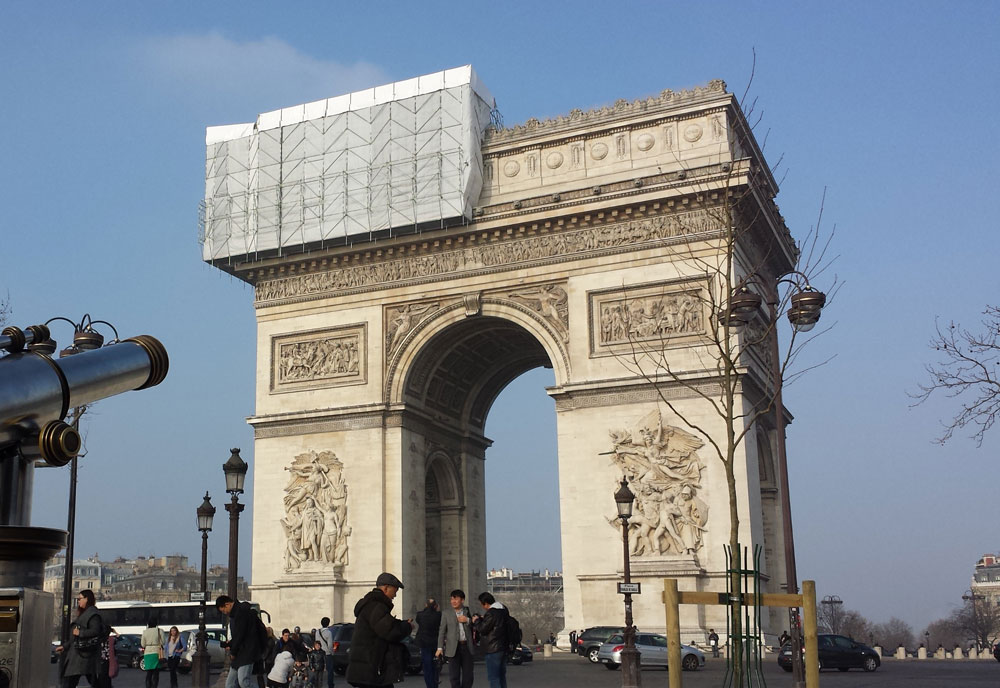

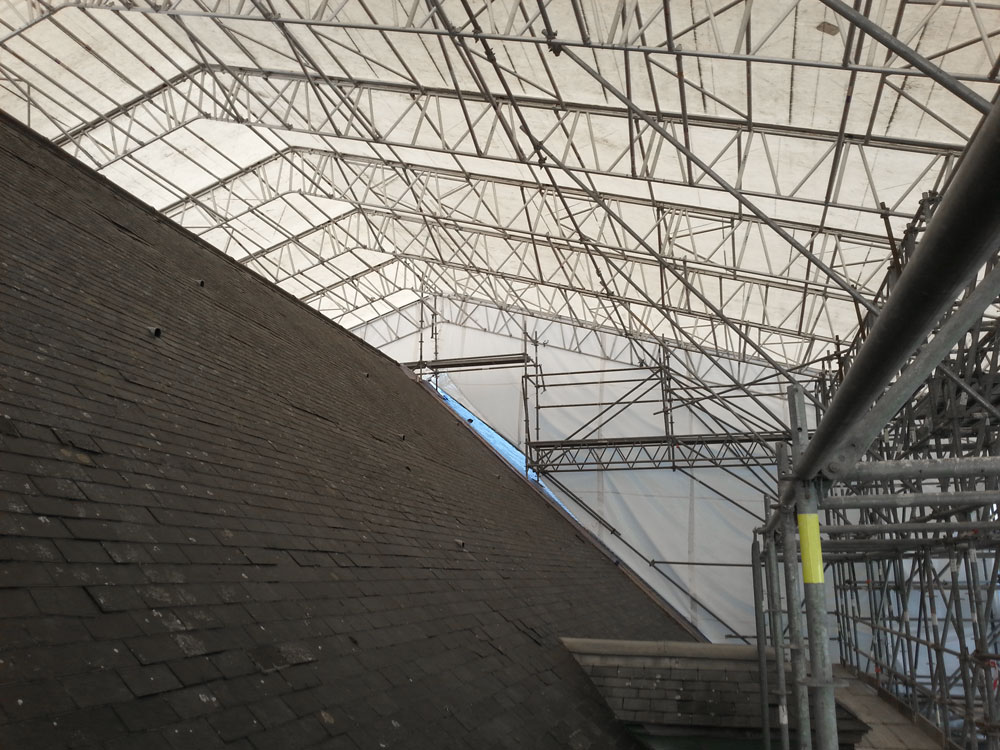

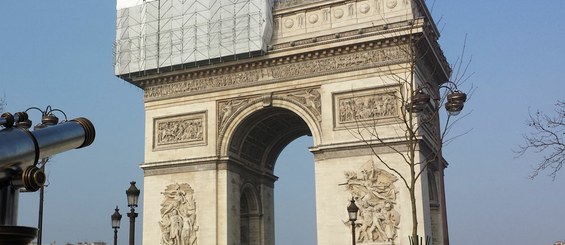

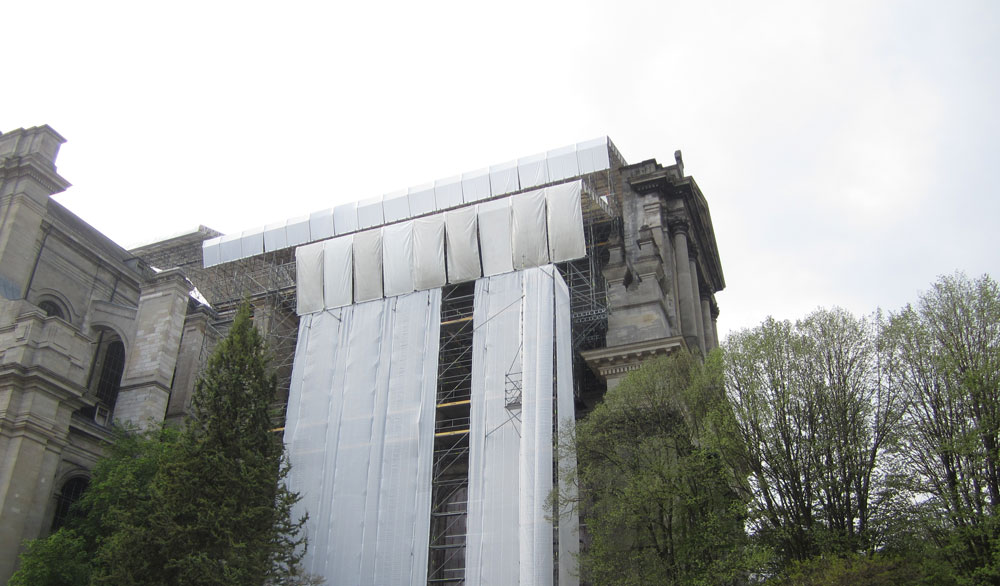

Temporary roofs
- Provides protection from the rain, snow and extreme temperatures while construction is underway, while protecting pedestrians from any falling material.
- Protection for large spans.
- Multiple configurations can be formed according to need.
- Pre-assembled on the ground and hoisted by crane.
- Roofing covered with different materials such as heavy-duty canvas or sheet metal.
- Can be combined with the MK formwork system to increase load-bearing capacity and make a greater range of spatial configurations possible.

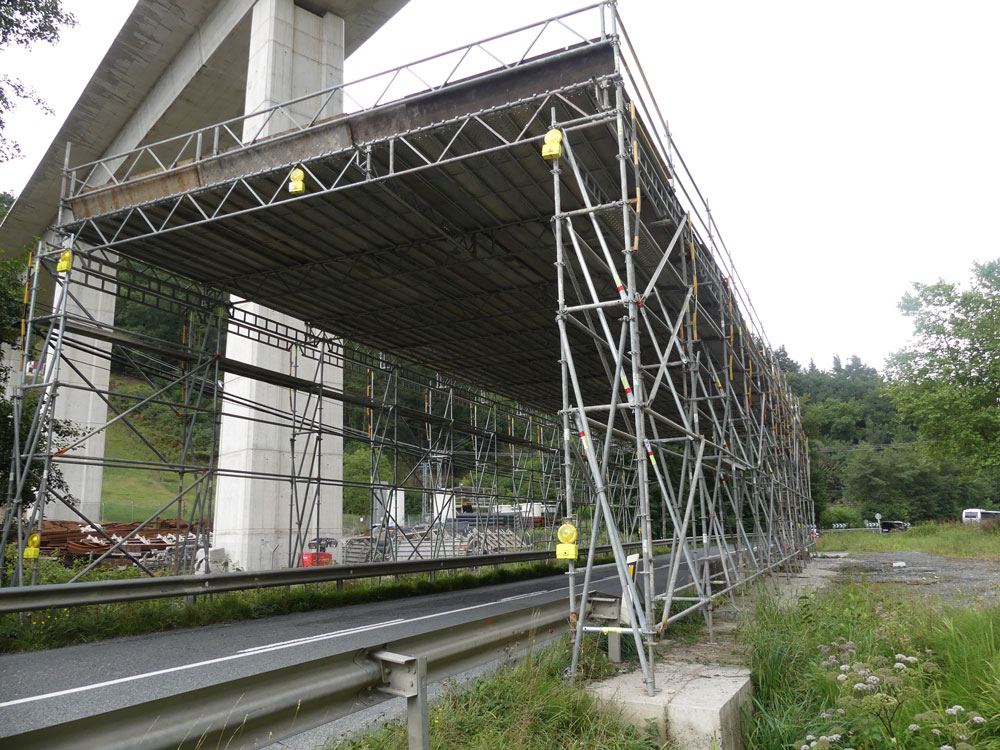

Protective Structures for flyovers
Used in the construction of overpasses, protecting workers while they work and allowing traffic to flow in complete safety underneath the protection scaffolding. The protective structure is composed of scaffolding towers, reinforcing latticework, and a roofing platform.
Slab edge protection
A scaffolding structure that covers the entire perimeter of the building under construction. It is an ideal solution when site safety requirements are demanding. As well as guaranteeing worker safety, it facilitates various tasks such as the placement of stop-end formwork and rebar, pouring concrete, even installing scaffolding and exterior finishing. The protection scaffolding is built up alongside the structure construction.
Roof edge protection
Protects against the inherent dangers of work on the roof edge with netting or a metal perimeter enclosure. ULMA edge protection is certified with the NF certificate based on Standard EN 13374:2004, class C.
Wall and façade support
A heavy-duty BRIO structure that supports the façade, preventing it from leaning or collapsing.
- It may be combined with BRIO Metric Scaffolding System and the MK formwork system, providing greater adaptability and robustness. Enables virtually any configuration.
- Simple to assemble, with faster assembly time and all safety components integrated.
- Guaranteed safety for workers and third parties.
- The cost-effectiveness of the system is guaranteed for all applications.
